德國BOSERL研發制造節能環保減速機電機一體機_帶電機減速器一套_電動機與減速箱_電機減速器,19年創辦中國BOSERL減速機生產廠家伯仕傳動

減速機電機一體機_帶電機減速器一套_德國BOSERL電動機與減速箱生產廠家

咨詢服務熱線：

13360667204

微信13360667204

斜齒輪蝸輪蝸桿減速機電機
網站首頁 > BOSERL減速機 > 齒輪蝸輪蝸桿減速機廠家 > SA系列減速機廠家

SA37DV71S4詳細信息

prevnext

SA37DV71S4

訂購熱線：13360667204
  1. 詳細信息

關鍵詞：5.5千瓦調速電機減速器一體機_SA37DV71S4_SA37DM71S4

SA37DV71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
SA37DV71S498.800.25KW13.0rpm108N.m17kg3000N
0.80
SA37DV71S486.360.25KW15.0rpm96N.m17kg3000N0.90
SA37DV71S480.96
0.25KW16.0rpm91N.m17kg3000N0.95
SA37DV71S471.440.25KW18.0rpm81N.m17kg3000N
1.05
SA37DV71S463.330.25KW21.0rpm73N.m17kg3000N1.10
SA37DV71S455.930.25KW23.0rpm78N.m17kg3000N1.05
SA37DV71S451.300.25KW25.0rpm72N.m17kg3000N
1.15
SA37DV71S443.680.25KW30.0rpm62N.m17kg3000N1.30
SA37DV71S437.660.25KW35.0rpm54N.m17kg3000N1.45
SA37DV71S435.100.25KW37.0rpm51N.m17kg3000N
1.55
SA37DV71S430.680.25KW42.0rpm45N.m17kg3000N1.70
SA37DV71S428.760.25KW45.0rpm42N.m17kg3000N1.80
SA37DV71S425.380.25KW51.0rpm37N.m17kg3000N
2.00
SA37DV71S422.500.25KW58.0rpm33N.m17kg3000N2.20
SA37DV71S419.890.25KW65.0rpm32N.m17kg2870N1.65
SA37DV71S418.240.25KW71.0rpm29N.m17kg2820N1.80
SA37DV71S415.530.25KW84.0rpm25N.m17kg2710N2.00
SA37DV71S413.390.25KW97.0rpm22N.m17kg2620N2.30
SA37DV71S412.480.25KW104rpm20N.m17kg2570N2.40
SA37DV71S410.910.25KW119rpm18N.m17kg2480N2.70
SA37DV71S410.230.25KW127rpm17N.m17kg2440N2.80
SA37DV71S49.020.25KW144rpm15N.m17kg2360N3.10
SA37DV71S48.000.25KW162rpm13N.m17kg2280N3.40
SA37DV71S46.800.25KW191rpm11N.m17kg2180N3.80

SA37DM71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
SA37DM71S498.800.25KW13.0rpm108N.m17kg3000N
0.80
SA37DM71S486.360.25KW15.0rpm96N.m17kg3000N0.90
SA37DM71S480.96
0.25KW16.0rpm91N.m17kg3000N0.95
SA37DM71S471.440.25KW18.0rpm81N.m17kg3000N
1.05
SA37DM71S463.330.25KW21.0rpm73N.m17kg3000N1.10
SA37DM71S455.930.25KW23.0rpm78N.m17kg3000N1.05
SA37DM71S451.300.25KW25.0rpm72N.m17kg3000N
1.15
SA37DM71S443.680.25KW30.0rpm62N.m17kg3000N1.30
SA37DM71S437.660.25KW35.0rpm54N.m17kg3000N1.45
SA37DM71S435.100.25KW37.0rpm51N.m17kg3000N
1.55
SA37DM71S430.680.25KW42.0rpm45N.m17kg3000N1.70
SA37DM71S428.760.25KW45.0rpm42N.m17kg3000N1.80
SA37DM71S425.380.25KW51.0rpm37N.m17kg3000N
2.00
SA37DM71S422.500.25KW58.0rpm33N.m17kg3000N2.20
SA37DM71S419.890.25KW65.0rpm32N.m17kg2870N1.65
SA37DM71S418.240.25KW71.0rpm29N.m17kg2820N1.80
SA37DM71S415.530.25KW84.0rpm25N.m17kg2710N2.00
SA37DM71S413.390.25KW97.0rpm22N.m17kg2620N2.30
SA37DM71S412.480.25KW104rpm20N.m17kg2570N2.40
SA37DM71S410.910.25KW119rpm18N.m17kg2480N2.70
SA37DM71S410.230.25KW127rpm17N.m17kg2440N2.80
SA37DM71S49.020.25KW144rpm15N.m17kg2360N3.10
SA37DM71S48.000.25KW162rpm13N.m17kg2280N3.40
SA37DM71S46.800.25KW191rpm11N.m17kg2180N3.80

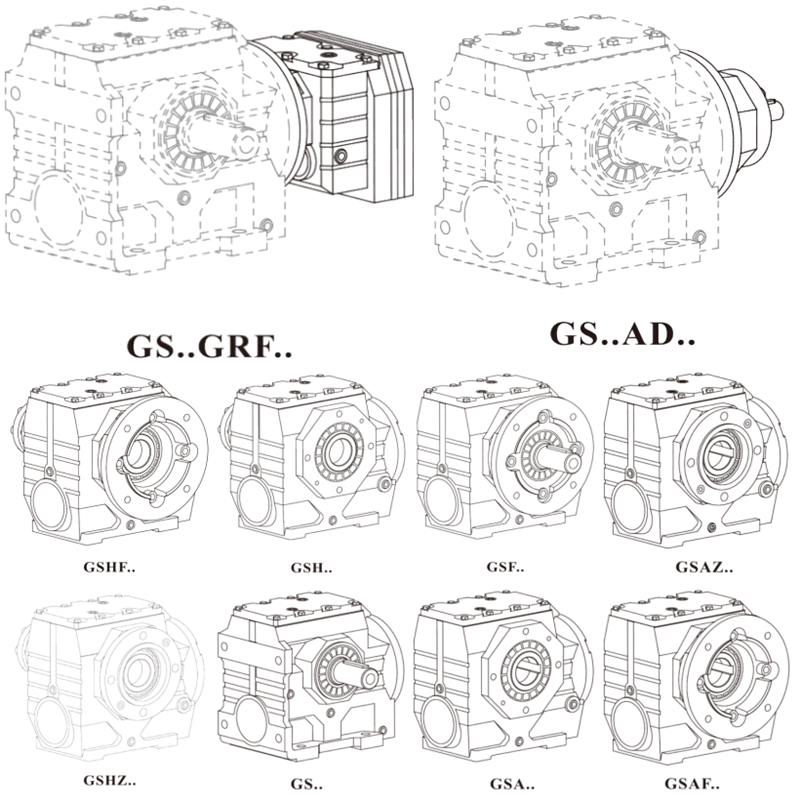

SA37DV71S4齒輪減速機馬達類型：

S..DR..底腳安裝斜齒輪自鎖減速機

SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機

SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機

SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機

SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機

SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

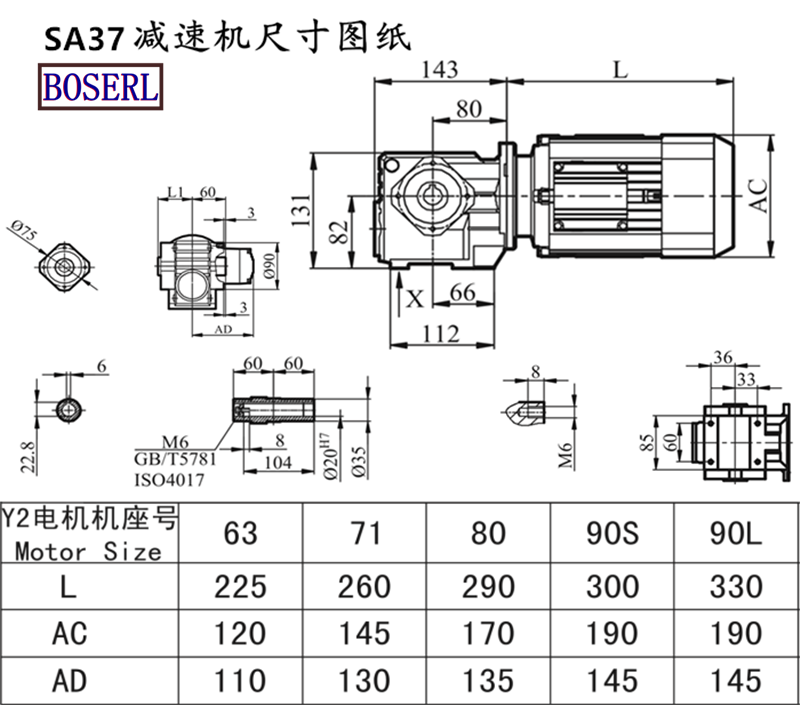

SA37DV71S4齒輪減速機馬達安裝尺寸圖紙



SA37DV71S4齒輪減速機馬達生產工廠展示：看廠請提前三天預約

二級減速機應用案例展示：

關鍵詞:SA系列減速機_二級減速器與電機_雙極減速機電機一套_二級減速機_二極減速機_雙級減速機_SA系列減速機生產廠家

SA系列減速機型號：SA37減速機,SA47減速機,SA57減速機,SA67減速機,SA77減速機,SA87減速機,SA97減速機

SA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間


如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:  5.5千瓦調速電機減速器一體機 SA37DV71S4 SA37DM71S4

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SA37DV71S4減速機樣本 點擊下載
SA37DV71S4減速機三維圖紙 點擊下載
